Ensemble RX II (HF/LF) Home -
Band: HF

(to change the band from HF, click on the "BAND" tab, above)

Announcement - Official Site

This site is now the officially maintained site for the Ensemble RX II kit. The previous documentation on www.wb5rvz.com is no longer being maintained. If you are curious, you can still pop over to the previous site to see the original documentation, but be advised that it is no longer being maintained there.

Design Change and New PCB Layout

FiveDash have announced a new board and associated changes to schematics and Bils of Material. Please see the Yahoo Softrock40 reflector, message #75035 for details. If your board is dated 6/20/13, you will need to refer to that message to identify changes to these notes. I have updated the affected steps in the affected stages (LO - Install T1 and BPF - Install T2) to show the changes to the board layout.

The other changes have to do with the use of 27 gauge vs #30 gauge wire in certain of the coils L1-L12 in the BPF stage. New winding instructions are now reflected on the relevant BOMs.


de robby wb5rvz

Introduction

General Info

The Ensemble RX LF/HF kit and its 4.5: X 2" board representing the culmination of a long line of Softrock SDR receivers from FiveDash, Inc. (Tony Parks, KB9YIG). The line began with the Softrock 40 RX and went through several iterations of receivers. The most recent receiver was the All-band HF receiver with anautomatically switched bandpass filter. This current kit is a refinement on that kit and further streamlines the kitting process for Tony Parks, the designer and supplier.

This kit is for the HF band. You cah switch between the HF and LF band options via the "Band" tab in the menu at the top of this (and each) page.

HF Option

The Ensemble RX LF/HF kit provides coverage of HF ham bands from 160-10m, in four different optional "super bands" (each with underlap and overlap within the parameters of the associated bandpass filter):

  1. Band 0: 160m - Continuous coverage from 1.8 to 4.0 MHz
  2. Band 1: 80m and 40m - Continuous coverage from 4.0 to 8.0 MHz
  3. Band 2: 30m, 20m, and 17m - Continuous coverage from 8.0 to 16 MHz
  4. Band 3: 15m, 12m, and 10m - Continuous coverage from 16 to 30 MHz

The band coverage is via 4 switchable "bands" ("superbands"). Band switching is performed under program control, in conjunction with programmatic control of the receive frequency. This control is provided by an Atmel ATTiny85 micro-controller, acting as a USB device to control the Si570 programmable oscillator and automatically switch to the appropriate band (0-3) as the frequency changes.

As a welcome improvement over other models, this kit provides pcb-right-angle jacks for all external connections: Antenna, USB from the PC, I/Q output to the PC, and Power to the Board. Thus, once built, the kit can be placed in a suitable enclosure and handled thereafter as a "blackbox peripheral" to the PC.

The design of the Ensemble RX is very similar to the receiver design of its sibling Ensemble RXTX. The major difference is the greater band coverage of the Ensemble RX kit (roughly 4 "superbands" on the RX vs. 1 "superband" on the RXTX).

This kit is an excellent value for both the licensed amateur and the SWL who is comfortable with building electronics kits. The skill level and experience requirements are medium-level because of the small size of the components, the requirement to be able to solder SMT parts, and the requirement to wind and install inductors. Thousands of builders have proven this is not an insurmountable set of requirements. If you are new at this, you should try one of Tony's sub $20 monobander RX kits as a "starter/learner" kit.

Several hams have provided interesting/informative galleries of photos as they have followed these build notes:

Recommended Enclosure

Tom KM5KH offers a very nice enclosure for the Ensemble RX line.

Theory of Operaton

Basic Theory

For a very readable (if somewhat dated) presentation of the fundamentals of SDR receivers, see the presentation by Bob, G8VOI..

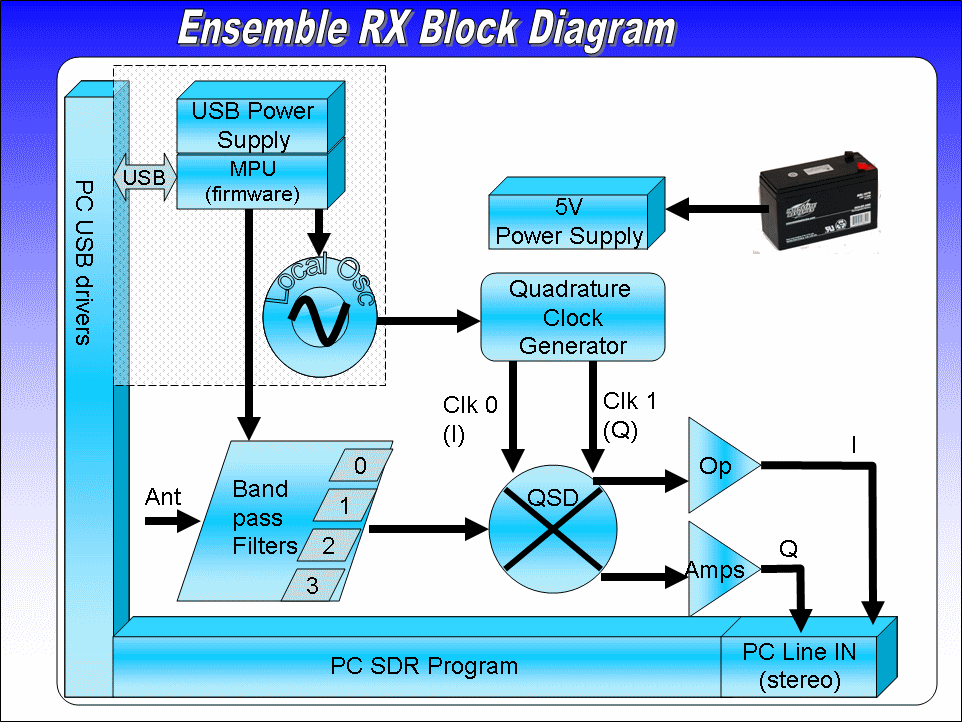

Block Diagram

block diagram of ensemble rx

This receiver implements a quadrature sampling detector to produce low frequency I and Q signals for input to the stereo line in inputs of a PC sound card. The I and Q signals are the product of the quadrature sampling detector (QSD) stage, in which bandpass filtered "chunks" of RF are mixed with quadrature clock signals to produce the down-converted I and Q signals. These products (the I and Q pairs) are identical to each other in all respects except phase, where they are 90 degrees apart.

The I/Q products of the QSD ("mixer"), when input to the appropriate SDR program through the PC's STEREO line-in soundcard input, result in a spectrum display on the PC which will show signals arrayed around a "center frequency". This "center frequency" is the frequency of the I/Q outputs from the Quadrature Clock Generators. The bandwidth of the signals either side of the center frequency will be approximately equal to the sampling rate of the PC's sound card. Thus, if the local oscillator is tuned to produce 28.4 MHz to the Quadrature Clock Generators, they will output two signals (I and Q clocks) at 7.1MHz (the "center frequency"). If the PC's sound card has a 48 kHz sampling rate, then the SDR program can translate the QSD's I/Q outputs into a chunk of spectrum that is 24 kHz either side of the center frequency of 7.1 MHz: i.e, 7.076 - 7.124 MHz. If the LF Option is built (by eliminating the HF Jumper and installing the second 74AC74 IC to allow for a divide-by-16), the center frequency resulting from a local oscillator frequency of 3.5 MHz (the lowest for the Si570) will be approximately 218 kHz.

As the user tunes the receiver, varying the frequency of the local oscillator, the micro-controller tracks the frequency and switches the appropriate bandpass filter into the RF chain. The SDR program's display will update to show the new center frequency and adjust the scale to reflect the current +/- bandwidth around that center frequency. At all times, the operator can see all signals that are within this movable "window" (whose total width is 48, 96, or 192 kHz, depending upon the sampling rate of the PC's soundcard).

The receiver is controlled via a USB connection from the PC. This USB connection provides a "USB 5V" bus for the local oscillator and micro-controller. A separate 3.3 V voltage regulator on the 5 USB 5 volt bus provides power to the programmable oscillator, the Si570.

The RX has an Atmel ATTiny85 micro-controller unit which, acting as a USB device, and on the "USB 5V" rail, controls the frequency output of the programmable local oscillator (Si570) and provides two switching signals which can be used to select one of four filter banks in the band pass filter

The output of the local oscillator is at a frequency which is 4 times the desired center frequency of the receiver and is consumed in the Quadrature Clock Generators.

The Quadrature Clock Generators divides the local oscillator frequency by 4 (or, for the LF option, by 16) to produce two clock signals - QSE Clk 0 and QSE Clk 1 - which will be used to clock the QSD stage. These I and Q clock signals are identical in all respects but phase (they are in quadrature - 90 degrees phase separation).

Rf at the antenna jack is filtered through the Bandpass Filter Stage, where one of four "chunks" of the HF (or LF) band is selected by the micro-controller, based upon the tuning of the programmable Local Oscillator. The filtered RF is passed as input to the QSD Stage.

The Quadrature Sampling Detector (QSD) Stage acts very similar to a mixer. It incorporates a high-speed switch that is clocked by the two QSD clock signals from the Quadrature Clock Generators and switches the incoming RF into a RC sampling network. The result is two outputs at low frequency and also in quadrature, which are the down-converted, baseband analogs of the incoming RF signals.

The outputs of the QSD stage are then fed into a pair of high gain Operational Amplifiers to produce the I and Q baseband signals which will be input to the PC soundcard's stereo Line In.

Schematic

Below is the full schematic for the complete kit. In addition, subsets of this schematic will be presented in each build stage, focussing only on the functionality of that stage. Stage-level schematics will have labels indicating "connections" to the subschematics of other stages; you can click on those "connections" to quickly navigate to the indicated stage(s). Author's completed board pictures are based upon an even earlier early version of the pcb (differences were minor).

main schematic

You can also view the original schematics from Tony Parks:

Bill of Materials

The bill of materials for this kit (HF option) is provided in two formats:

  • BOM (via the "BOM" tab in the menu at the top of the page): providing summary bill of materials for the components required for this band option (HF option).
  • BOM X-Ref(via the "BOM X-Ref" tab above): providing the detailed bill of materials and listing each individual component, along with a cross-reference of the component to the build stage in which it is installed/used.

In addition, there is a complete Inventory ("Inventory" Tab, above) of all of the components, irresective of the kit option, provided in the kit (since the kit provides components for both band options, leaving the decision as to which option to build up to the builder at build time). The builder should first verify all components via the inventory; then use the BOM (for the selected option) to select the parts that wil be used in the actual build of the selected option.

Each build stage will also provide a subset of the overall BOM, listing jost those components required in that stage. Similarly, each step in each build stage will present its own "step-BOM" bill of materials, listing only those components needed in that step.

Board Layouts

Below are the full board layouts for the kit. Each build stage will present board layout graphics focussed upon the areas of the board (top and bottom) relevant to that build stage. Note that there is a newboard layout, effective 6/20/2013. If your board is dated 6/20/2013, you have the latest board. Both the 6/15/2010 and 6/20/2013 layouts are shown below.

Topside (6/15/2010 version)

topside layout

Topside (6/20/2013 version)

topside layout(2013)

Underside(6/15/2010 version)

undersideside layout

Underside(6/20/2013 version)

undersideside layou(2013)t

Build Stages

This kit is built in stages, with each stage being testable upon completion.

The stages in the build are, in build order:

Completed Images

Note: the completed pictures are of the HF option, which the author built. Other band options (which the author did not build) will appear slightly different (especially the inductors, whose windings and cores will vary by band) for the band-specific components.

Topside

completed topside

Underside

completed underside

Background Info

Tools

Winding Inductors

This page has the following inductors:

  1. L01

    COIL: 5.5uH: 35T #30(20in) on T30-2(red)
    Using approximately 20 inches of #30 wire, wind 35 turns on a 0.30 inch od T30-2 (red) ferrite. Inductance = 5.50 uH.

  2. L02

    COIL: 2.6uH: 24T #30(15in) on T30-2(red)
    Using approximately 15 inches of #30 wire, wind 24 turns on a 0.30 inch od T30-2 (red) ferrite. Inductance = 2.60 uH.

  3. L03

    COIL: 5.5uH: 35T #30(20in) on T30-2(red)
    Using approximately 20 inches of #30 wire, wind 35 turns on a 0.30 inch od T30-2 (red) ferrite. Inductance = 5.50 uH.

  4. L04

    COIL: 2uH: 21T #30(13in) on T30-2(red)
    Using approximately 14 inches of #30 wire, wind 21 turns on a 0.30 inch od T30-2 (red) ferrite. Inductance = 2.00 uH.

  5. L05

    COIL: 0.46uH: 10T #30(8in) on T30-2(red)
    Using approximately 8 inches of #30 wire, wind 10 turns on a 0.30 inch od T30-2 (red) ferrite. Inductance = 0.46 uH.

  6. L06

    COIL: 2uH: 21T #30(13in) on T30-2(red)
    Using approximately 14 inches of #30 wire, wind 21 turns on a 0.30 inch od T30-2 (red) ferrite. Inductance = 2.00 uH.

  7. L07

    COIL: 1uH: 19T #30(9in) on T25-6(yel)
    Using approximately 10 inches of #30 wire, wind 19 turns on a 0.25 inch od T25-6 (yellow) ferrite. Inductance = 1.00 uH.

  8. L08

    COIL: 0.27uH: 10T #30 on T25-6 c(yellow)
    Using approximately 7 inches of #30 wire, wind 10 turns on a 0.25 inch od T25-6 (yellow) ferrite. Inductance = 27.00 uH.

  9. L09

    COIL: 1uH: 19T #30(9in) on T25-6(yel)
    Using approximately 10 inches of #30 wire, wind 19 turns on a 0.25 inch od T25-6 (yellow) ferrite. Inductance = 1.00 uH.

  10. L10

    COIL: 0.46uH: 13T #30 on T25-6 core
    Using approximately 8 inches of #30 wire, wind 13 turns on a 0.25 inch od T25-6 (yellow) ferrite. Inductance = 0.46 uH.

  11. L11

    COIL: 0.13uH: 7T #30 on T25-6 core
    Using approximately 6 inches of #30 wire, wind 7 turns on a 0.25 inch od T25-6 (yellow) ferrite. Inductance = 0.13 uH.

  12. L12

    COIL: 0.46uH: 13T #30 on T25-6 core
    Using approximately 8 inches of #30 wire, wind 13 turns on a 0.25 inch od T25-6 (yellow) ferrite. Inductance = 0.46 uH.

  13. T01

    XFRMR: 5.76uH: 2T(bi)T #30(5 (2x2.5)in) on BN43-2402
    Primary/Secondary using a total of approximately 5 inches of #30 wire, wind 2 turns , bifilar, on a BN-43-2402 ferrite.Inductance of the single winding (usually the primary) is 5.76 uH.

  14. T02

    XFRMR: 23.04uH: 4T(bi)T #30(8 (2x4)in) on BN43-2402
    Primary/Secondary using a total of approximately 8 inches of #30 wire, wind 4 turns , bifilar, on a BN-43-2402 ferrite.Inductance of the single winding (usually the primary) is 23.04 uH.

  15. T03

    XFRMR: 23.04uH: 4T/2T(bi)T #30(9(4/2x2.5)in) on BN43-2402
    Primary: Using approximately 4 inches of #30 wire, wind 4 turns on a BN-43-2402 ferrite.
    Secondary: Using a total of 5 inches of #30 wire, wind 2 turns , bifilar, on the ferrite in the same direction as the primary winding. Inductance of the single winding (usually the primary) is 23.04 uH.

To learn how to wind coils and transformers, please read the

Component Identification

After soldering problems, the most common cause of trouble in kit building is the installation of the incorrect component. Most often this is the case with resistors (hint - if voltage or current draw tests are way out of whack, suspect resistors or solder bridges). Invest in a cheap multimeter and MEASURE the resistance. As Pete, M0FMT, said: " ... then you don't have to worry about this modern trend of poor identification of components. I doubt you will find an issue with Tony's kits but measuring is best. A cheap OVA meter costs 2 or 3 bucks and a simple cap bridge is easy to build. (you can search E-Bay for "L/C/F Inductance Capacitance High Precision Meter" and will find several digital L/C meters for $20-$30) These two bits of kit are worth there wieght in gold. Oh and most meters have diode and transistor testers build in... remarkable when you think back to the darkages when I were a lad."

It cannot be overstressed: do not rely solely on the color codes for identification of the correct resistor; ALWAYS measure with your ohmmeter as a double check. Measure twice, cut once.

Soldering

If you are not experienced at soldering (and even if you are somewhat experienced at soldering), refer to excellent tutorial on basic soldering techniques by Tom Hammond N0SS (SK).

This video provides some excellent hints at soldering (and de-soldering) SMT components:

The video below describes techniques for soldering SOIC 14 (and 16 and 8) SMDs

"

View the above in full-screen mode on Youtube.

You may also want to review the information from the HamNation series on George, W5JDX, and his build of the Softrock Ensemble RXTX. He uses an inexpensive heat gun and Solder paste to install SMT capacitors and ICs. The Session where he introduces the process is in Episode #70 at 36 minutes, 30 seconds into the podcast.

For the more adventurous, there is a process using solder paste and an electric oven called the reflow process, which can be used to install all the SMT chips to one side of the PC Board. This is documented by Guenael Jouchet in the following Youtube segment:

ESD Protection

You may wish to review the message topic beginning at Message 43554 for a common-sense discussion on ESD.

  • Avoid carpets in cool, dry areas.
  • Leave PC cards and memory modules in their anti-static packaging until ready to be installed.
  • Dissipate static electricity before handling any system components (PC cards, memory modules) by touching a grounded metal object, such as the system unit unpainted metal chassis.
  • If possible, use antistatic devices, such as wrist straps and antistatic mats (see Radio Shack's Set for $25 or the JameCo AntiStatic mat for $15)).
  • Always hold a PC card or memory module by its edges. Avoid touching the contacts and components on the memory module.
  • Before removing chips from insulator, put on the wrist strap connected to the ESD mat. All work with CMOS chips should be done with the wrist strap on.
  • As an added precaution before first touching a chip, you should touch a finger to a grounded metal surface.
  • If using a DMM, its outside should be in contact with the ground of the ESD mat, and both leads shorted to this ground before use.
  • See the review of ESD Precautions at this link.

Work Area

  • You will need a well-lit work area and a minimum of 3X magnification (the author uses a cheap magnifying fluorescent light with a 3X lens. This is supplemented by a hand-held 10 X loupe - with light - for close-in inspection of solder joints and SMT installation.
  • You should use a cookie sheet or baking pan (with four sides raised approximately a half an inch) for your actual work space. It is highly recommended for building on top of in order to catch stray parts, especially the tiny SMT chips which, once they are launched by an errant tweezer squeeze, are nigh on impossible to find if they are not caught on the cookie sheet.

Misc Tools

  • It is most important to solidly clamp the PCB in a holder when soldering. A "third-hand" (e.g., Panavise or the Hendricks kits PCB Vise) can hold your board while soldering.   In a pinch, you can get by with a simple third-hand, alligator clip vise. Jan G0BBL suggests "A very cheap way is to screw a Large Document Clip to a woodblock which will clamp the side of a PCB."
  • Magnifying Head Strap
  • Tweezers (bent tip is preferable).
  • A toothpick and some beeswax - these can be used to pickup SMT devices and hold them steady while soldering.
  • Diagonal side cutters.
  • Small, rounded jaw needle-nose pliers.
  • Set of jewelers' screwdrivers
  • An Exacto knife.
  • Fine-grit emery paper.
